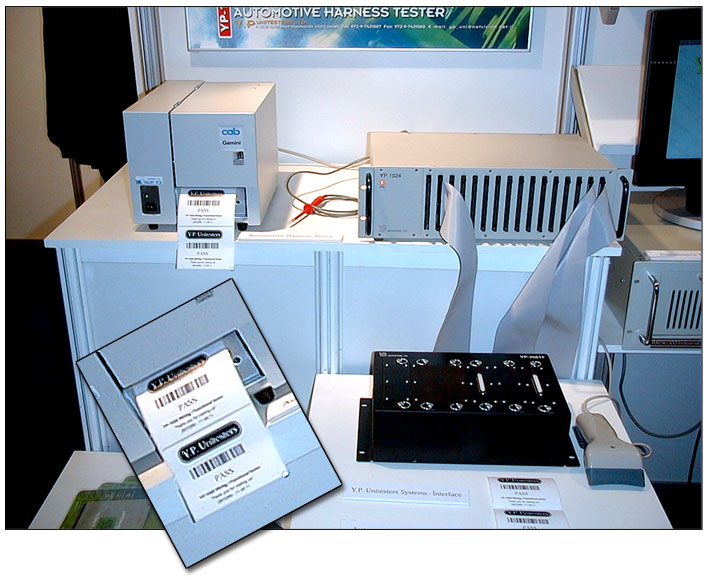

YP-1024 Low voltage cable & harness tester (Up to 5V)
- tests as many as 100 pins in less than five seconds
- diagnoses shorts, opens, malfunctions and mis-wires in
any cable
Eminently efficient, affordable and highly productive, the YP-1024 tests as many as 100 pins in less than five seconds.
The YP-1024 checks pin-to-pin wiring, the functionality of embedded components (diodes, capacitors, resistors and more); and it also diagnoses shorts, opens, malfunctions and mis-wires in any cable.
Although primarily developed for the automotive industry, this tester is suitable for all low voltage testing purposes.
Features
- User-friendly, menu driven software.
- No programming experience needed
- Complies with MIL-C3885F (Cable Assemblies and Cord Assemblies Electrical Standard)
- Applicable to a wide variety of cable lengths and shielding
- No calibration processes required
- Implements high capacity database for reports, wiring lists and UUT connector types (Including UUT pins designation)
- Performs self-learning of good wired assembly samples
- Imports wiring lists from CAD/CAM or host computer
- Includes automatic BIT and initiated self test.
- Selection of voltage, current or resistance configured for one or a group of chains.
|
|
|
Comprehensive
Simple
Reliable
|
|
|
All YPU systems verify, check and report on:
|
 |
Circuit continuity |
|
|
Pin to pin wiring |
|
|
Resistors |
|
|
Relays |
|
|
Diodes |
|
|
Capacitors |
|
|
Switch and circuit breakers |
|
High Voltage Testers also verify, check and report on:
|
|
Insulation resistance to short circuits |
|
|
Dielectric breakdown |
|
|
Ease Of use:
|
|
YPU software eliminates tedious programming steps. Point and click boxes write commands and modes, and define parameters. Users can build customized libraries, prepare wire lists and functional tests, and build programs to suit the requirements of any kind of wired assembly - and all this, without the need to memorize codes. |
|
|
YPU testers have self-learning capability. Programs no longer have to be written from scratch. Simply attach a "golden cable" (a UUT that is known to be good) to the YPU system. The computer compiles and saves a wiring test program, which can be later used to provide the same types of results when testing other cables. This self-learning capability is particularly useful for analyzing and testing cables whose design and/or production parameters are not known. YPU testers collect and record the wiring patterns of any kind of cable or harness, then generate appropriate testing programs and finally conduct rapid automated test for opens, shorts, and miswires. |
|
|
|
Reliability:
|
|
Continuity Res. Current -10mA, 100mA, 500mA (1A opt) ±10% (up to 5Vdc) |
|
|
Resistance - (2W) - 0.2Ω to 100KΩ ±5% ±0.2Ω |
|
|
Resistance - (4W) - 0.5 mΩ to 100KΩ ±5% ±0.2mΩ |
|
|
Insulation Res. Voltage -100 to 1500Vdc (50 Volt steps) ±5% ±5V |
|
|
Resistance - Up to 1G Ω ±5% |
|
|
Wait time - 50 mS to 60 Sec. (conditional or fixed) |
|
|
Dielectric Strength Voltage - 200 to 1000Vdc/ac* (50 Volt steps) ±3% ±5V |
|
|
Leakage current - 0.1mA to 1mA±10% ±20¢A |
|
|
Dwell time - 50 mS to 60 Sec. |
|
|
Component testing Resistance (2W) - 0.1Ω to 250MΩ±5%±0.1Ω |
|
|
Capacitance - 200pF to 10mF±5%±100pF |
|
|
Diodes, Zeners, LEDs forward voltage up to 2VDC±20mV |
|
|
|
|
